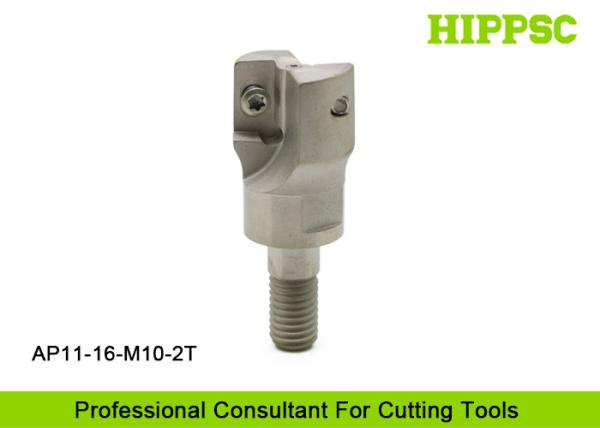

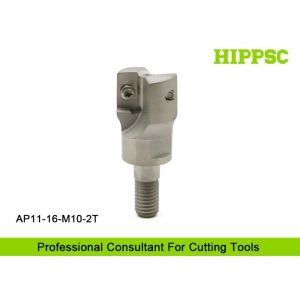

Square Shoulder CNC Custom Router Bit Thread Mount Bolt Milling Head
Ⅰ. Features And Advantages
- Cotacted with holding fixture by thread mount, strong stability.
- Suit for HSK/SK tool holder and cemented carbide extensions.
- With internal coolant supply, protect cutting tools and reduce cost.
- It is suitable for square shoulder and high feed milling, equal altitude
milling, precision machining,chamfering. - Remove residual material smoothy.
Ⅱ. Technical Parametes
| Product Name | AP11-16-M10-2T Milling Head |
| Type | Square Shoulder |
| Material | Special Steel |
| Processing | Milling, precision and chamfering |
Ⅲ. Product Introduction
Standard Items
| Model Number | D | L | M | Z | Insert | Screw | Spanner |
| AP11-16-M08-2T | 16 | 25 | M08 | 2 | APMT1135 | M2.5*6 | T9 |
| AP11-17-M08-2T | 17 | 25 | M08 | 2 | APMT1135 |
| AP11-20-M10-2T | 20 | 30 | M10 | 2 | APMT1135 |
| AP11-21-M10-2T | 21 | 30 | M10 | 2 | APMT1135 |
| AP11-25-M12-3T | 25 | 35 | M12 | 3 | APMT1135 |
| AP11-26-M12-3T | 26 | 35 | M12 | 3 | APMT1135 |
| AP16-25-M12-2T | 25 | 40 | M12 | 2 | APMT1604 | M4.0*11 | T15 |
| AP16-30-M16-2T | 30 | 40 | M16 | 2 | APMT1604 |
| AP16-32-M16-3T | 32 | 40 | M16 | 3 | APMT1604 |
| AP16-35-M16-3T | 35 | 40 | M16 | 3 | APMT1604 |
Ⅳ. Overview for HIPPSC Products
1. AP11-16-M10-2T Milling Head / CNC Router Bits.
2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6. Tool Holders/Arbors/Shanks for Mirror Finishing.
7. Morse Taper/Tapering Tool Holders/Shanks.
8. Face Milling Adapters/Tool Holders/Arbors/Shanks.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.
Ⅴ. Shipmen
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
PE Bag.
Plastic Box
Carton Box.
Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.
Ⅶ. Warehouse
1. Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.
Ⅷ. Manufacturing and Sales Service
1. Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2. OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3. Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
